KARMA F405 V1 Flight Stack. User Manual.

Flight stack developed with the aim of improving, wherever possible, from reliable and efficient technical solutions to improved assembly ergonomics. KARMA F405V1 is the first step in the pursuit of perfection.

SPECIFICATIONS

FLIGHT CONTROLLER

Main technical specifications of KARMA F405 V1 flight stack
MCUSTM32F405
IMUICM-42688-P
BarometerBMP280
BEC5V 4A
Mounting30.5 x 30.5
Dimensions48.5 x 40
CamSwitchyes
BlackboxMicroSD
LC filter camera poweryes
Blackboxyes
LC filter VTX poweryes
Allowed battery current2.4 A

ESC

Power and mounting parameters of KARMA F405 V1 flight stack
Power4s-6s
Current4x50A
MCU72Mhz 32Bit
FirmwareAM32
Mounting30.5 x 30.5

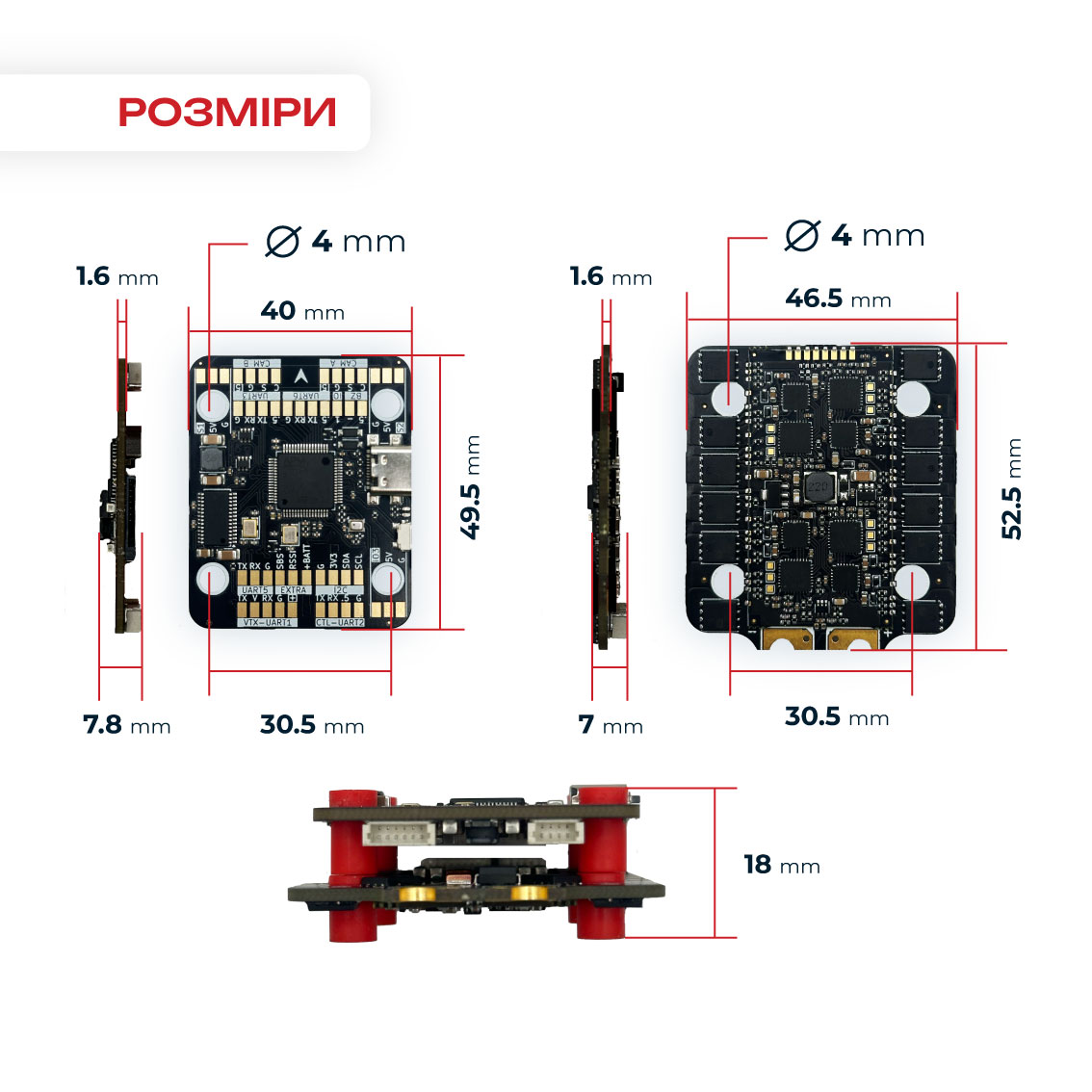

DIMENSIONS

Dimentions

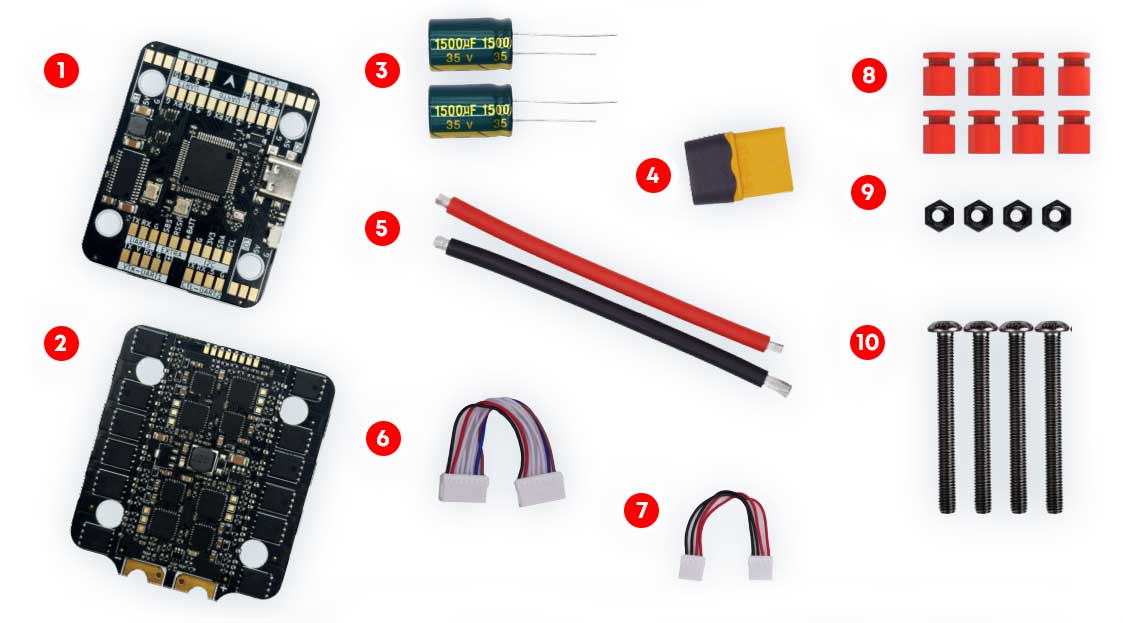

FLIGHT STACK COMPLETE SET

Complete set

Power and mounting parameters of KARMA F405 V1 flight stack
  Flight controller1 pcs.
   ESC1 pcs.
  Capacitor 1500uF 35V2 pcs.
  XT60 connector1 pcs.
  Power wires 12AWG 10cm2 pcs.
  Signal wire FC<>ESC (JST SH 8p)1 pcs.
  Redundant power wire FC<>ESC (JST SH 4p)1 pcs.
  Silicone vibration dampeners8 pcs.
  Nut4 pcs.
  Screw4 pcs.
